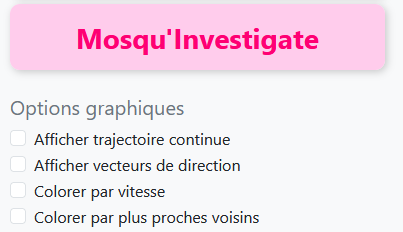

Welcome to the Mosqu'Investigate Documentation!#

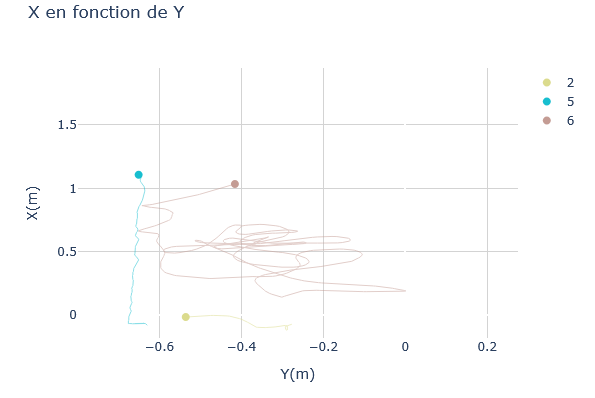

1 – Display continuous trajectories#

Enabling this option lets you view the complete trajectories of the selected objects across all 2D and 3D graphs.

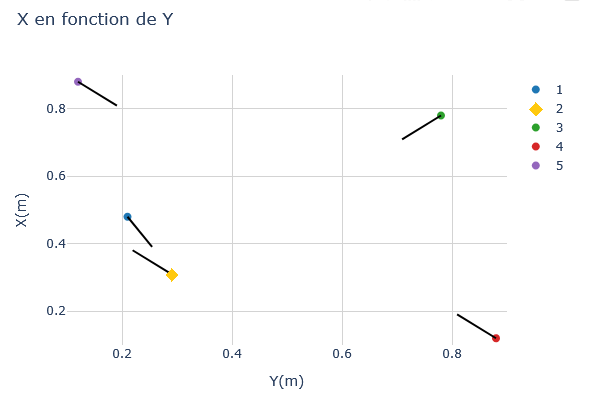

2 – Display direction vectors#

Enabling the vector option allows you to see the general direction in which the objects are moving.
An additional feature is also enabled: detecting pointed objects (i.e., objects toward which another object is moving).

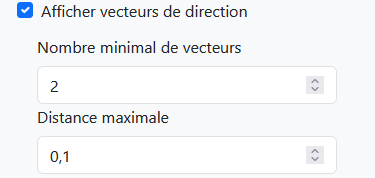

You can adjust the settings to highlight the pointed objects:

• The first parameter sets the minimum number of times an object must be pointed at to be considered a pointed object.
• The second parameter sets the maximum distance from other objects that are pointing toward it.

Pointed objects are highlighted with a diamond shape visible on the graph and in the legend.

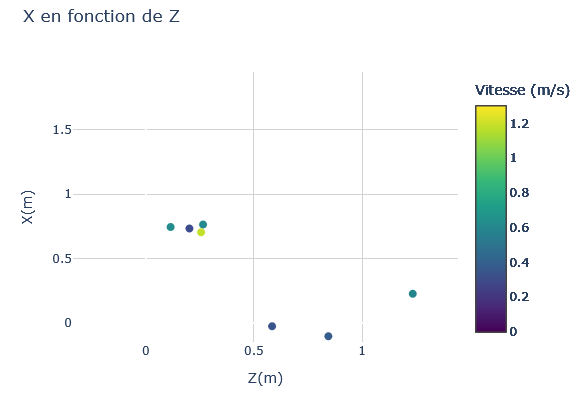

3 – Color by speed#

When this option is enabled, objects are colored according to their speed.

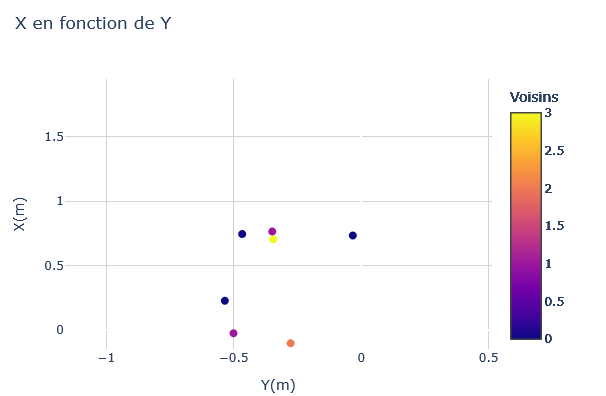

4 – Color by nearest neighbors#

When this option is enabled, objects are colored according to the number of their nearest neighbors.
